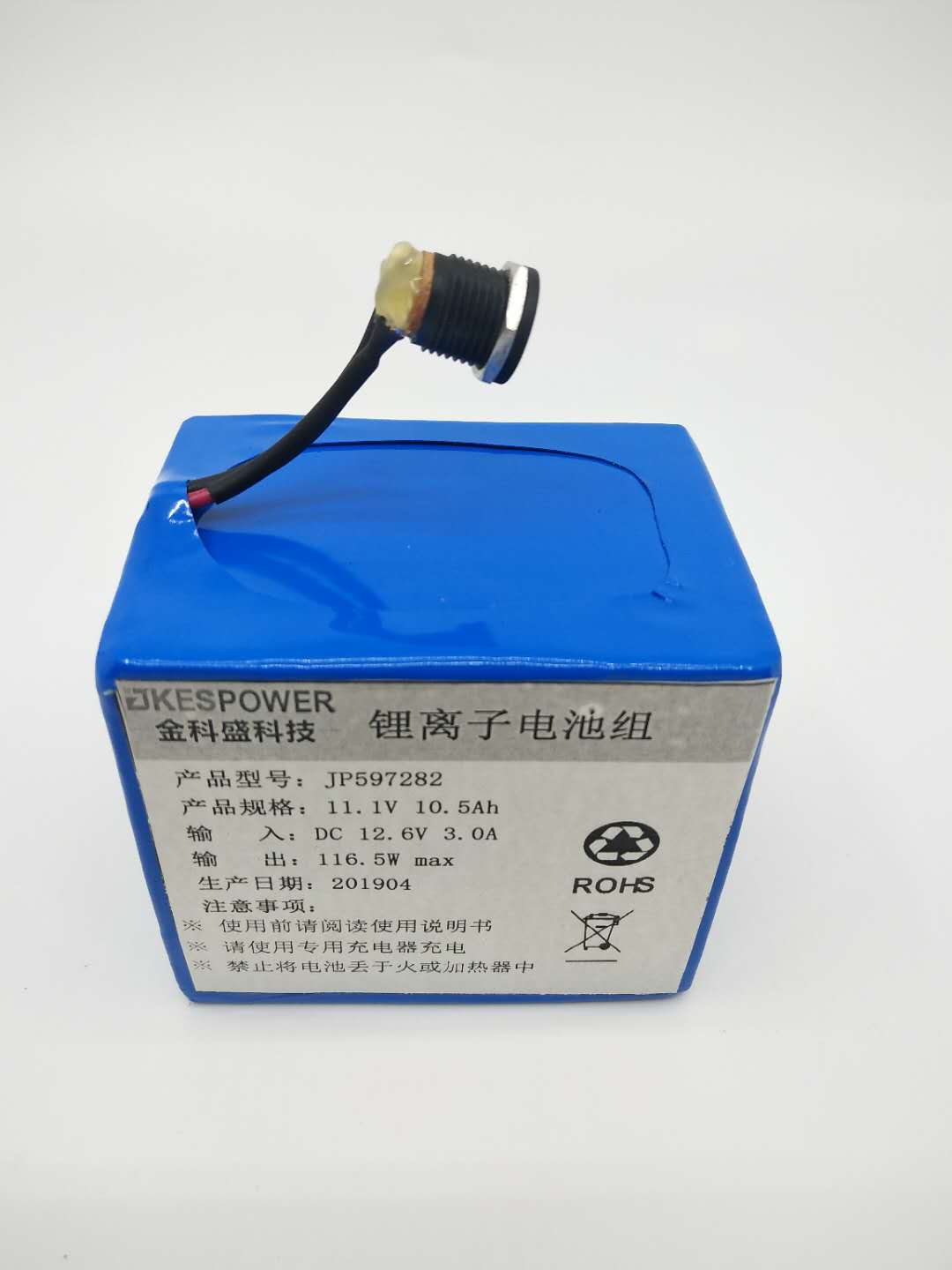

Rechargeable high capacity 11.1v Li-ion Battery Pack 10.5Ah for
power tools
1) Excellent high discharge rate
2.) Extra-low internal impedance
3.) Discharge in high-temperature
4.) Long cycle life and high quality
5.) Easy customized, energy density
6.) Low self-discharge etc
We can customize all kinds of lithium ion or li-polymer batteries
by the requirements from customer as we have a independent R&D
team and OEM/ODM is acceptable .
Rechargeable high capacity 11.1v Li-ion Battery Pack 10.5Ah for
power tools
| NO. | Items | Specifications |
| 1 | Charge voltage | 12.6V |
| 2 | Nominal voltage | 11.1V(3S4P) |
| 3 | Initial impedance | 160mΩ |
| 4 | Nominal capacity | 10.5Ah |
| 5 | Minimum capacity | 10.0Ah |
| 6 | Low-temperature capacity | ≥6.0Ah | When the battery is standard charged, it shall be put into chamber
at ( -20±2 )℃for 8-16hrs,then discharged at 0.2C5A (2.1A) constant current to 7.5V |
| 7 | Charge current | Standard Charging::0.2C5A (2.1A) Rapid charge:0.5C5A (5.25A) Max |
| 8 | Standard Charging method | 2.1A(0.2C5A) CC(constant current)charge to 12.6V,then CV(constant voltage
12.6V)charge till charge current decline to ≤105mA(≈0.01C5A) |
| 9 | Charging time | Standard Charging:8.0hours(Ref.) Rapid charge: 3.5hours(Ref.) |
| 10 | Max.discharge current | 10.5A(1.0C5A) |
| 11 | Discharge cut-off voltage | 7.50V |
| 12 | Shelf life | 5 years |
| 13 | Cycle life (0.2C5A/0.2C5A) | 300 times(≧60%DOD) |
| 14 | Operating temperature | Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
| 15 | Storage temperature | Less than 1 month | -10℃~+45℃ | Percentage of recoverable capacity :85% |
| Less than 6 month | -20℃~+35℃ |
| 16 | Pack Weight | Approx:600g |
| 17 | Pack Dimension | Length: Max 82.00 mm Width: Max 72.00 mm Thickness:Max 59.00 mm |
| 18 | Other | Used in power tools |
FAQ:
Q:Are you a factory or a trading company?
A: We are factory + trading company together.
Q: Can we use our own logo or design?
A: Yes, we can do both OEM and ODM.
Q:What is your sample policy?
You need to pay sample fee,and it is refundable after you place
bulk order.
Q: What's the sampling time?
A: Samples can be provided within 5-7days after receiving the
sample shipping cost which will be refunded after you place an order.
Q. How long is the lead time?
Normally within 30 days after we received 30%TT deposit.
For urgent orders,we can do some adjustment to push the delivery
time.
