Pollution Free 2.4A 0.2C5A Charging Ultra Thin Battery Pack

Product Categories

Shenzhen Goldenbattery Technology Co.,Ltd

Contact Now

Add to Cart

flat ultrathin 3.7V battery ion lithium for toys lithium li-ion batteries solar storage li ion battery

our advantages:

1, High energy density

2, High working voltage for single battery cells

3, Pollution-free

4, Long cycle life

5, No memory effect

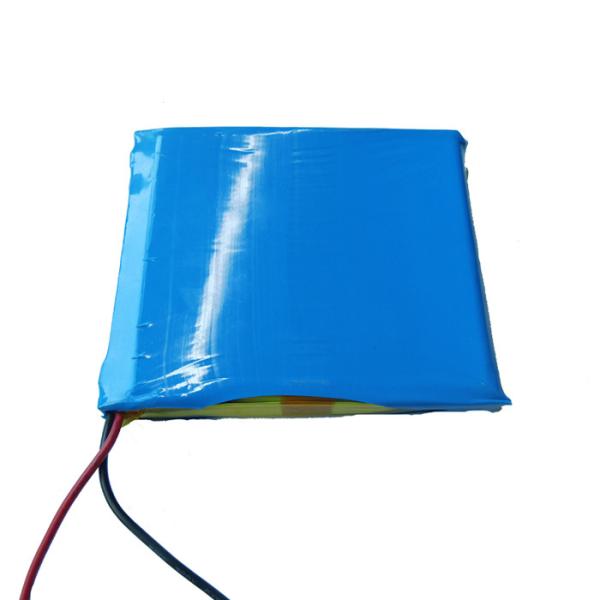

3.7V 12AH Ultrathin li-ion polymer battery

NO.	Items		Specifications
1	Charge voltage		4.2V
2	Nominal voltage		3.7V(1S2P)
3	Initial impedance		120mΩ
4	Nominal capacity		12Ah
5	Minimum capacity		11.8Ah
6	Low-temperature capacity		≥8.4Ah	When the battery is standard charged, it shall be put into chamber at ( -40±2 )℃for 8-16hrs,then discharged at 0.2C₅A (2.4A) constant current to2.5V
7	Charge current		Standard Charging::0.2C₅A (2.4A) Rapid charge:0.5C₅A C(6A) Max
8	Standard Charging method		2.4A(0.2C₅A) CC(constant current)charge to4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤120mA(≈0.01C₅A)
9	Charging time		Standard Charging:6.5hours(Ref.) Rapid charge: 3.5hours(Ref.)
10	Max.discharge current		6A(0.5C₅A)
11	Discharge cut-off voltage		2.5V
12	Shelf life		2years
13	Cycle life (0.2C₅A/0.2C₅A)		500 times,≧80%DOD
14	Operating temperature		Charging: 0℃~45℃ Discharging:-40℃~+60℃
15	Storage temperature	Less than 1 month	-10℃~+45℃		Percentage of recoverable capacity :70%
		Less than 6 month	-40℃~+35℃
16	Pack Weight		Approx:132g
17	Pack Dimension		Length: Max100.00 mm Width: Max90.00mm Thickness1:Max 13.00 mm

Warning	Do not overcharge, force charge, short circuit, disassemble, deform, heat or place the battery near a direct flame.Any of the above actions could cause it to ignite, explode or become damaged.
	Keep this battery out of the reach of children.
	When storing the battery or throwing it away, be sure to cover with tape.

Main Features	Thin format, light weigh, large area, and flexibility in design.
	Easily customized, Energy density, High capacity.

Applications	Smart wearable devices, smart cards, smart electronics.
	Bluetooth earphone, power bank,MPS, Tablet PC. laptop,GPS.
	Medical devices, electric children toys, electric shoes, electric blanket.
	Intelligent door lock, intelligent lighting, emergency light, industrial cameras.

Pollution Free 2.4A 0.2C5A Charging Ultra Thin Battery Pack
