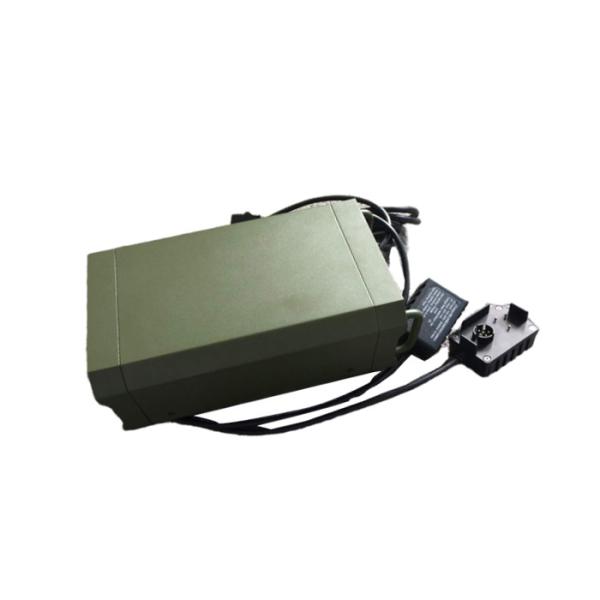

Military Standard Smart LA6 bb2590 BB590 Twins Charger With LCD
Display Soldier Portable Charger (SPC) ,Smart LA6 bb2590 BB590 Twins Charger can meet the standard as
sealed to IP55, Shock and vibration to MIL-Std 810, the function of
this soldier portable charger is same with Brentronic original
charger ,which is more convenient and lighter to carry ,besides
this smart two way charger have different application for battery
in military radios ,Jammer, Robotics, Drones, UAVs, Military
communication solutions ,meanwhile , bb2590 BB590 Twins Charger
will be executed testing before delivery to make use quality.
Smart LA6 bb2590 BB590 Twins Charger With LCD Display
| NO. | Item | Specification |
| 1 | AC Input | 95-260VAC, 47-63Hz |
| 2 | | |
| 3 | Charge Rate | 2.0A (Max) |
| 4 | Battery Types | Any combination of the following batteries:
BB-390/U - (NiMH), BB-590/U - (NiCd),
BB-2590 / UBI-2590 (UBBL02) / MRC-2590
/U BBL09 / UBI-2590 SMBus (UBBL10) -Lithium-Ion (Li-ion) |
| 5 | User Interface | Off: No battery detected, Green Blinking: Charging, Green Steady
On: Charge complete, Red Blinking: Error |
| 6 | Dimensions | L7.21 inch*W3.82 inch*D1.61 inch (183*97*41mm) |
| 7 | Weight | 1.5Kg (3.30lbs) without batteries |
| 8 | Charging Temp | 0 to +45 Degrees Celsius |
| 9 | Storage Temp | -25 to +70 Degrees Celsius |
| 10 | Operating Altitude | 55,000 ft. (16,764m) |
| 11 | Storage Altitude | 27,000 ft. (8,229.6m) |
| 12 | Humidity | 95% relative |
| 13 | Accessories | AC and DC Cables |
These chargers are available in Golden battery company:
C. Charger:
a. CH0002: input: AC-95~260V,DC-19~30V,output: 1A~2A (With solar);
b. CH0004: input: AC-95~260V,DC-19~30V,output: 1A~2A (With solar).
D. Interphone battery:
a. JC-BP211: Li-Ion- 2250 mAh - two way radio replacement battery,
this battery is compatible with Icom two way radios;
b. JC-BP227: Li-Ion- 1900 mAh - two way radio replacement battery,
this battery is compatible with Icom two way radios;
c. JC-BP231: Li-Ion- 1000 mAh - two way radio replacement battery,
this battery is compatible with Icom two way radios;
d. JC-BP254: Li-Ion- 1600 mAh - two way radio replacement battery,
this battery is compatible with Icom two way radios;
e. JC-P5400: Li-Ion- 2900 mAh - two way radio replacement battery,
this battery is compatible with Harris two way radios;
f. JC-RPV3000: Li-Ion- 1900 mAh - two way radio replacement
battery, this battery is compatible with Relm, Bendix King two way
radios;
g. JC-ORCA5020: Ni-MH- 2000 mAh - two way radio replacement
battery, this battery is compatible with Tait Orca two way radios;
h. JC-KNB17A: Ni-Cd- 1100 mAh - two way radio replacement battery,
this battery is compatible with Kenwood two way radios.
